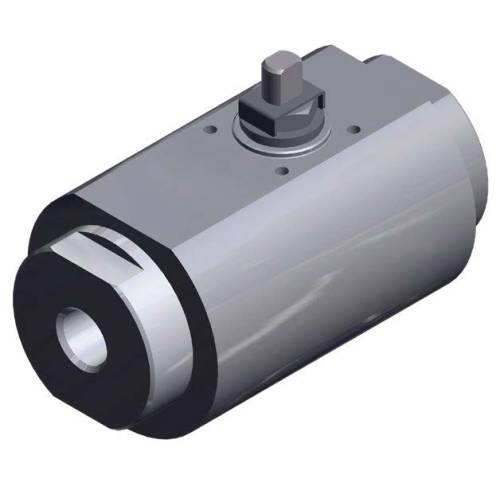

H2 Invictus - PN700 hydrogen ball valve

Makro Küresel vanalar

Kategori H2 INVICTUS

KONFİGÜRE İşlem

BİLGİ İSTEYİN

SAYFAYI YAZDIRIN

KATALOG İNDİRİN UCATH200 - H2 INVICTUS

avantajları
özellikleri
boyutlar
malzemeler
belgeler

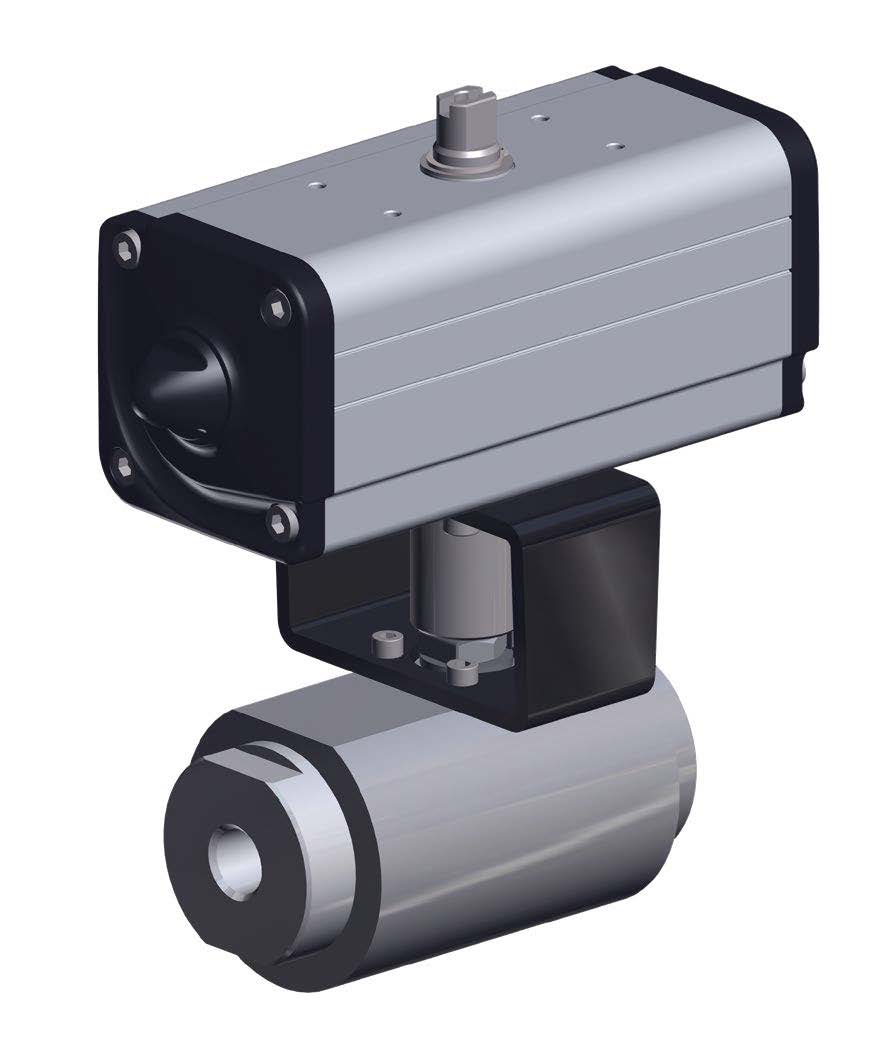

H2 Invictus - PN700 hydrogen ball valve - avantajları -

Body and ends
Made of ASTM A479 TP.316 with additional requirements for hydrogen service.

Ball and stem
Made of XM-19 (NITRONIC 50).
They combine high mechanical strength with a structure that minimises hydrogen embrittlement.

Sealing
Guaranteed by lip seals insensitive to rapid decompression phenomena.
Longer life due to its elastic module.

H2 Ready
All selected materials are suitable for 100% H2 service and verified by Material Assessment validated by TÜV SÜD.

ISO 19880-3 certification
Shut-off service - class “A”.
Allows installation inside hydrogen fuelling stations with a designation up to H50.

In compliance with ATEX 2014/34/UE european directive
Installation is possible in a potential explosive environment.

MAIN FEATURES:
• Floating ball;
• 2-pieces body;
• PN700 / H50;
• Soft-seat seal PEEK;
• Operating temperature: -40°C/+ 85°C;
• NPT-F (ANSI B1.20.1) and Cone & Thread connections (on request);
• Size range:
- from 1/8” to 1/2” with 8 mm passage diameter
- from 3/4” to 1” with 12 mm passage diameter
• Antistatic device EN12266-2;
• Anti Blow-out stem;
• Actuator connection as per standard ISO 5211;
• Intercepted fluid: hydrogen;

CERTIFICATIONS:
• ISO 19880-3;
• Ex CE/UKCA;

ENGINEERING STANDARDS:
• ISO 19880-1;
• ASME B16.34, ASME VIII div.1, EN 12516;

H2 Invictus - PN700 hydrogen ball valve - boyutlar -

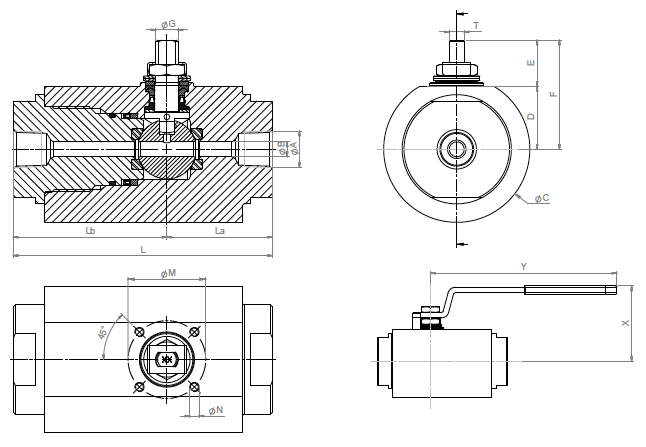

DIMENSIONS
NPS	DN	ØA	L	La	Lb	ØB	ØC	D	E	F	ØG	T	ISO 5211	ØM	ØN	Y	X	Weight Kg
1/8"	06	1/8" NPT	140	57	83	8	79	34	25	59	12	8	F04	42	M5	201,5	81	4,8
1/4"	08	1/4" NPT																4,8
3/8"	10	3/8" NPT																4,7
1/2"	15	1/2" NPT																4,6
3/4"	20	3/4" NPT	160	67	93	12	98	41	31	72	16	10	F05	50	M6	276,5	93	8,2
1"	25	1" NPT																8,1

H2 Invictus - PN700 hydrogen ball valve - malzemeler -

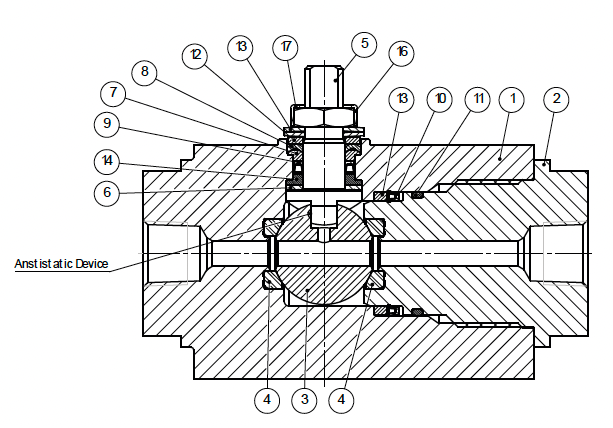

MATERIALS
1	Body	A479 tp.316 / 1.4401
2	Ends	A479 tp.316 / 1.4401
3	Ball	A479 tp.XM19 (Nitronic 50) Hard Chromium plated
4	Seats	Filled PEEK
5	Stem	A479 tp.XM19 (Nitronic 50)
6	Bottom sealing	DEVLON
7	Lower Chevron ring	Filled PEEK
8	Upper Chevron ring	DEVLON
9	Primary stem seal	PEEK
10	Primary body seal	PEEK
11	Secondary body seal	FKM 90
12	Gland nut ring	A479 tp.316 / 1.4401
13	Spring washer	301 SS
14	Stem ring	A479 tp.XM19 (Nitronic 50)
16	Stem nut	A4-70
17	Stem nut plate	304 SS
